The service and repair manual for the 2009 Ford E-150 — 4.6L V8 and 5.4L V8 engines, 4 trims. Matched to this exact model year, so the specifications and sequences are the ones Ford published for your car, not figures carried over from a neighbouring year.
01 / FitmentWhat this manual covers
| Model year | 2009 |
|---|---|
| Engines | 4.6L V8 — SOHC 5.4L V8 — SOHC |
| Trims | Base Extended Cargo Van 3-Door · Base Standard Cargo Van 3-Door · XL Standard Passenger Van 3-Door · XLT Standard Passenger Van 3-Door |
| Federal record | 10 recalls · 10 complaints · 17 technical service bulletins (refreshed 2026-08-21) |

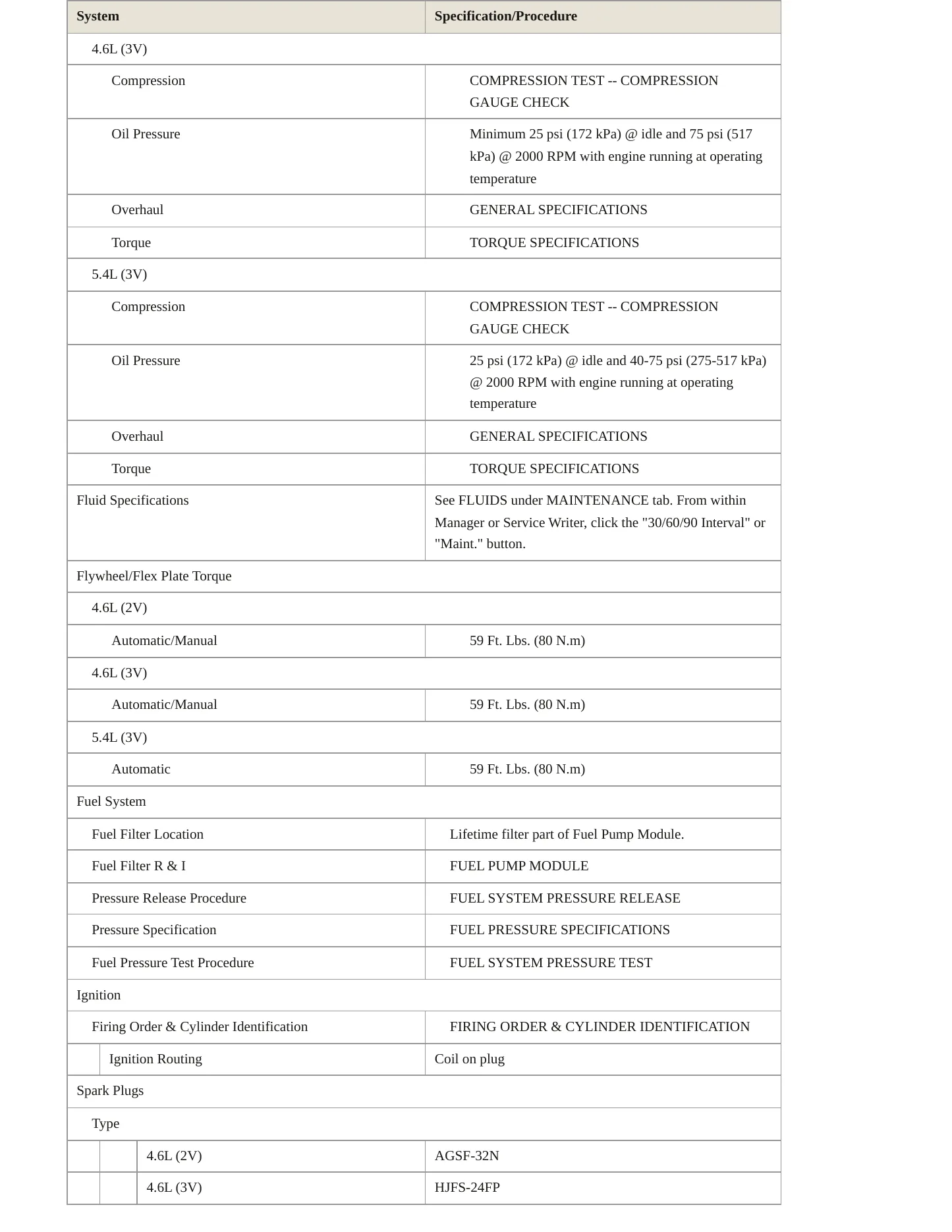

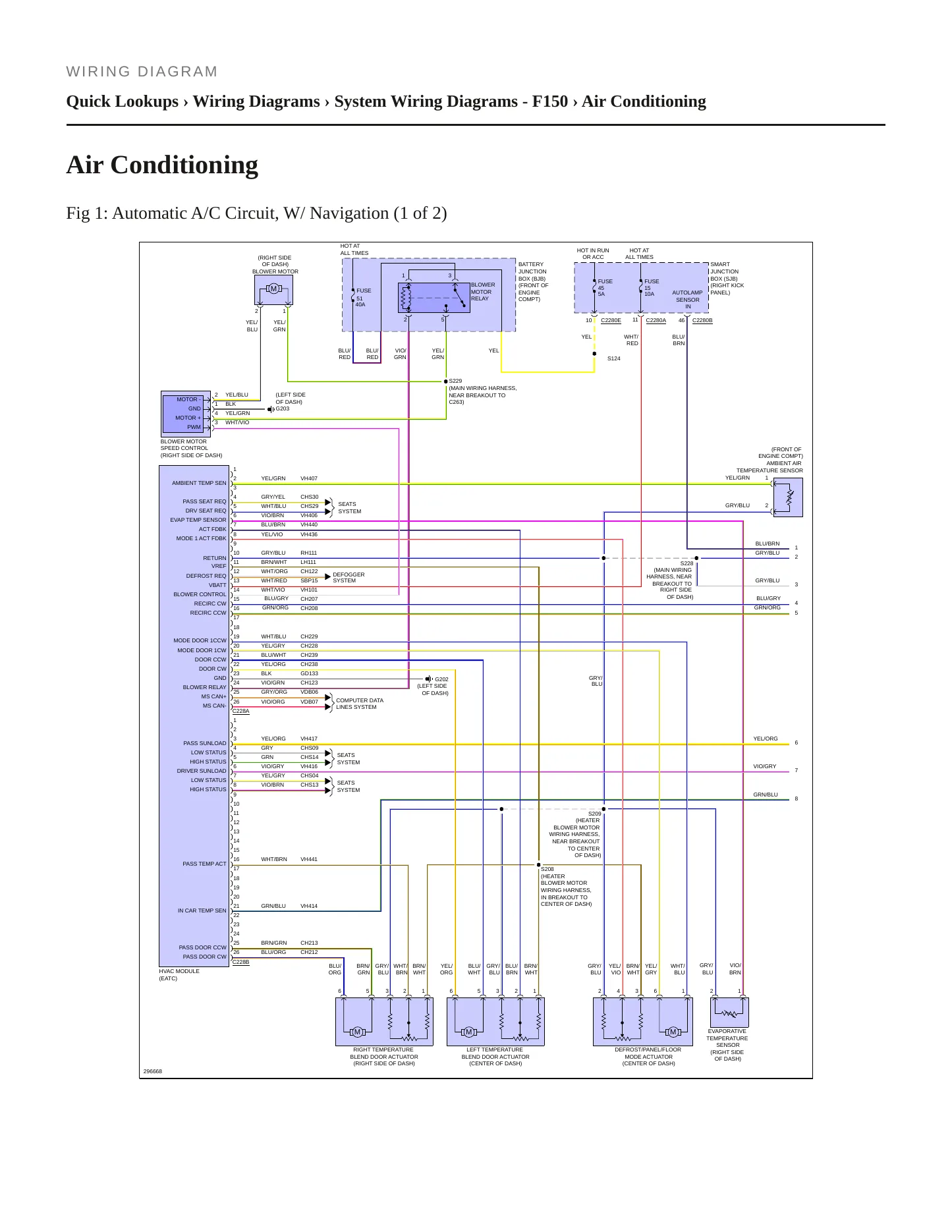

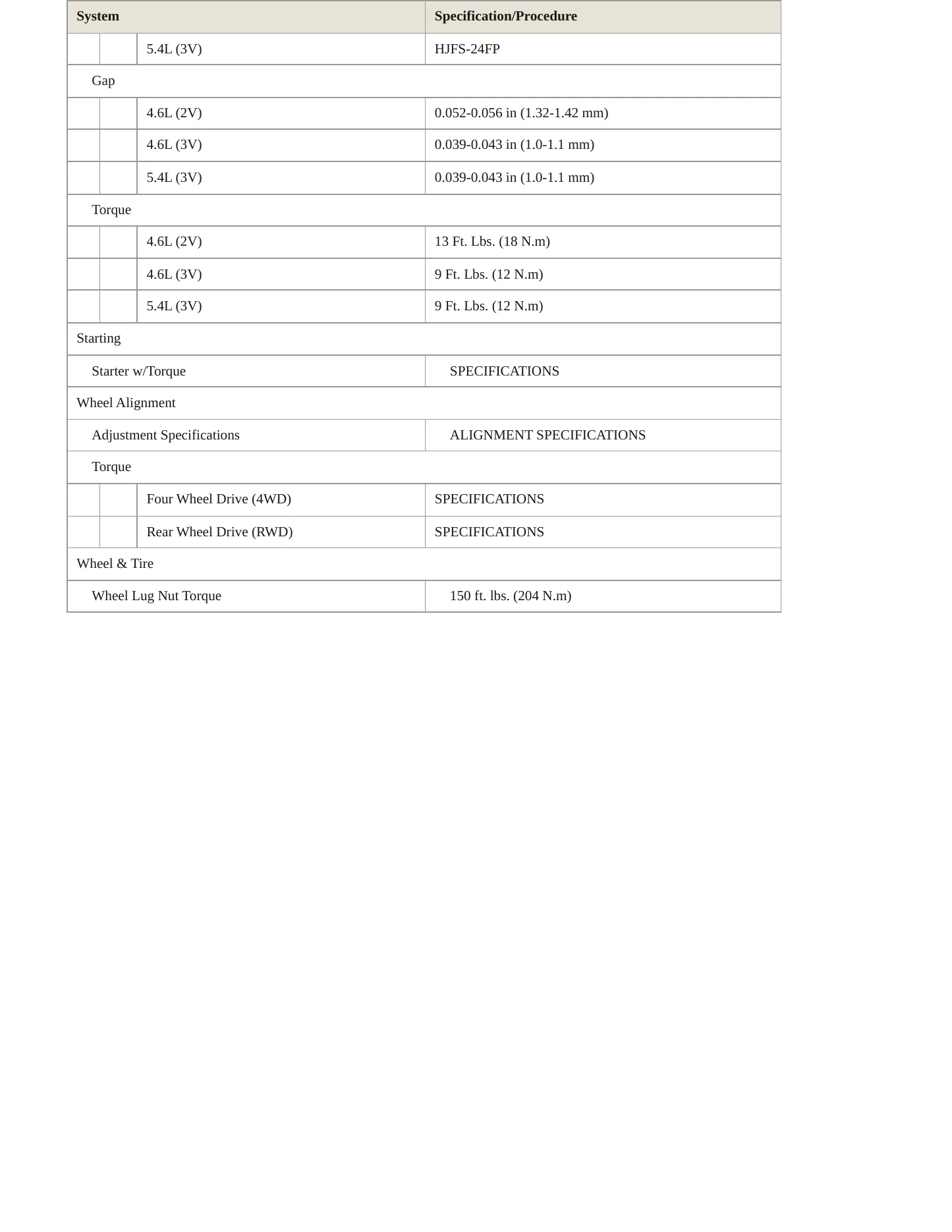

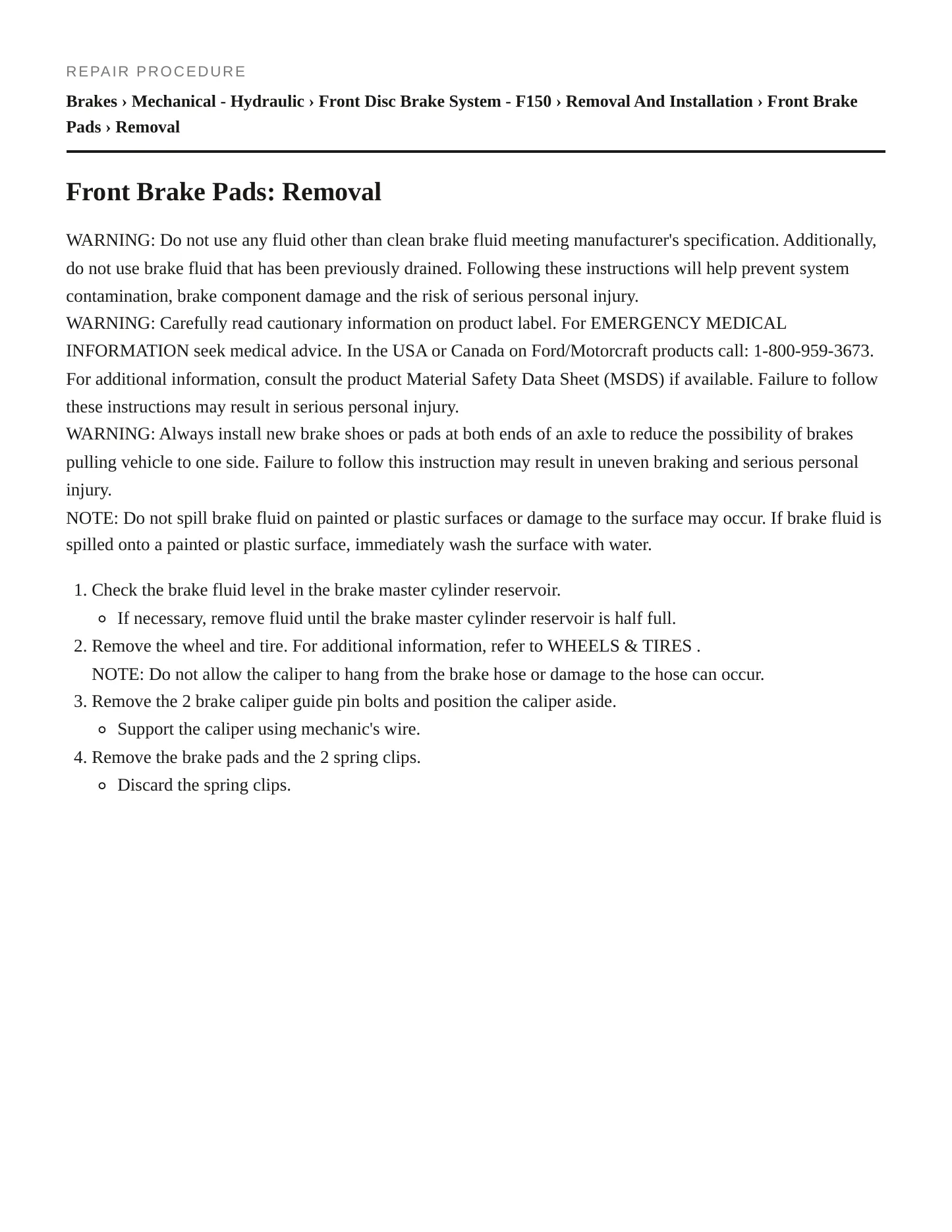

02 / InsideSample pages from the 2009 E-150 manual

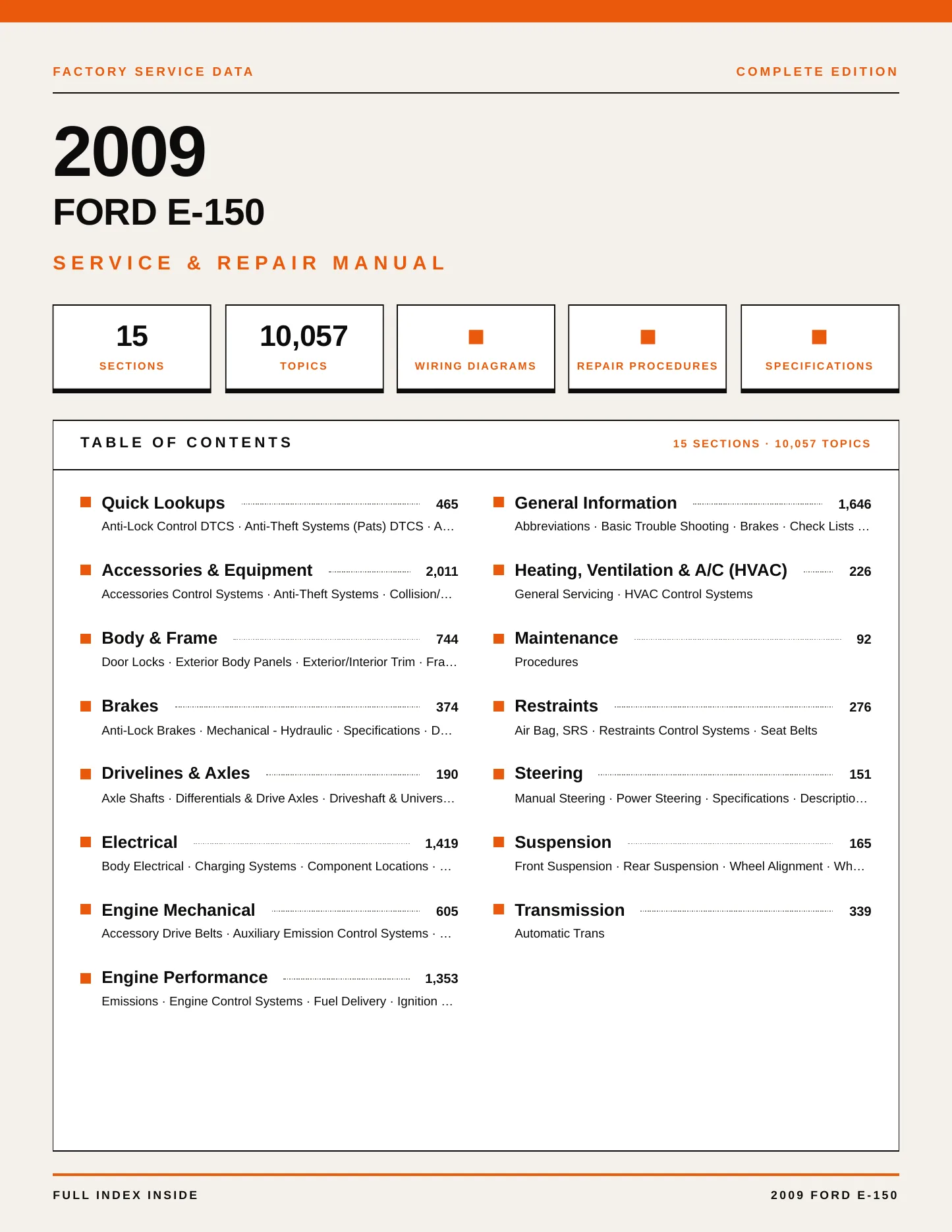

03 / ContentsSections in the manual
- Quick Lookups 465
- General Information 1,646
- Accessories & Equipment 2,011
- Heating, Ventilation & A/C (HVAC) 226
- Body & Frame 744
- Maintenance 92
- Brakes 374
- Restraints 276
- Drivelines & Axles 190
- Steering 151
- Electrical 1,419
- Suspension 165
- Engine Mechanical 605
- Transmission 339
- Engine Performance 1,353
- Radiator Cap Pressure 16
- Oil Pressure 25
04 / Known issuesRecalls on federal record for the 2009 E-150
- Fuel System, Other — fuel injection system · 11V450000Roush is recalling certain model year 2009-2011 ford e-150, e-250, and e-350 5.4l engin vans/wagons/cutaways, and model year 2010-2011 ford e-450 6.8l engine cutaway vehicles alter.
- Fuel System, Other — fuel injection system · 11E033000Roush is recalling certain aftermarket roush clean tech liquid propane autogas fuel system kits used for installation on the following vehicles: model year 2007 and 2008 ford e-3.
- Fuel System, Other — delivery › hoses, lines/piping, and fittings · 11E019000Roush is recalling certain aftermarket roush clean tech liquid propane autogas fuel system kits produced between december 17, 2010, and may 6, 2011, used for installation on fleet.
- Equipment · 13V261000Mobility works is recalling certain model year 2006-2012 ford e-150, e-250 and e-350 vehicles manufactured august 2006 through august 2012. the vehicles are equipped with certain.
- Equipment Adaptive/Mobility · 10V153000Comm-trans is recalling certain model year 2007-2009 ada conversion vans built on ford e-150, e-250, and e-350 chassis between december 7, 2007 and december 23, 2009 and fitted wi.
- Equipment Adaptive/Mobility · 10V151000Comm-trans is recalling certain model year 2007-2009 ada conversion vans built on ford e-150, e-250, and e-350 chassis between december 7, 2007 and december 23, 2009 and fitted wi.
- Equipment Adaptive/Mobility · 10V206000Mobility works is recalling certain model year 2008 and 2009 conversion vans built on ford e150, e250, and e350 chassis after november 2007 and fitted with ricon public use lifts.
- Equipment Adaptive/Mobility · 10V207000Mobility works is recalling certain model year 2008 and 2009 conversion vans built on ford e150, e250, and e350 chassis and chevrolet 2500 chassis after november 2007 and fitted wi.
- Equipment Adaptive/Mobility · 15V729000Mobilityworks (wmk inc.) is recalling certain model year 2006-2014 ford e-150, e-250, and e-350 vans modified by mobilityworks to be equipped with certain model s2005, s2010, s5005.
- Equipment Adaptive/Mobility · 10V242000Mobility transportation (mts) is recalling certain model year 2007 through 2009 conversion vans built on ford e150, e250, and e350 chassis from september 16, 2008 through april 15,.
Owners have filed 10 complaints and Ford has issued 17 technical service bulletins for the 2009 E-150. The manual carries the manufacturer's diagnostic and repair procedures behind these systems.
FAQQuestions about the 2009 E-150 manual
Is this manual specific to the 2009 E-150?
Yes. It is the OEM manual matched to the 2009 model year, covering the 4.6L V8 and 5.4L V8 across the Base Extended Cargo Van 3-Door, Base Standard Cargo Van 3-Door, XL Standard Passenger Van 3-Door, XLT Standard Passenger Van 3-Door trims. Specifications and procedure sequences are the ones Ford published for this year.
What 2009 E-150 problems does it help with?
10 recalls are on federal record for the 2009 E-150, covering fuel system, other, equipment, equipment adaptive/mobility. The manual carries the manufacturer's diagnostic and repair procedures for those systems; the recall repairs themselves are done free by Ford dealers.
Does it include 2009 E-150 wiring diagrams?
Yes — the complete wiring diagrams for the 2009 build, alongside repair procedures, specifications and diagnostics.
Is it a subscription?
No. $42.99 once and the manual is yours. It is a digital manual — nothing ships; access details arrive by email after checkout and it works on any device.
